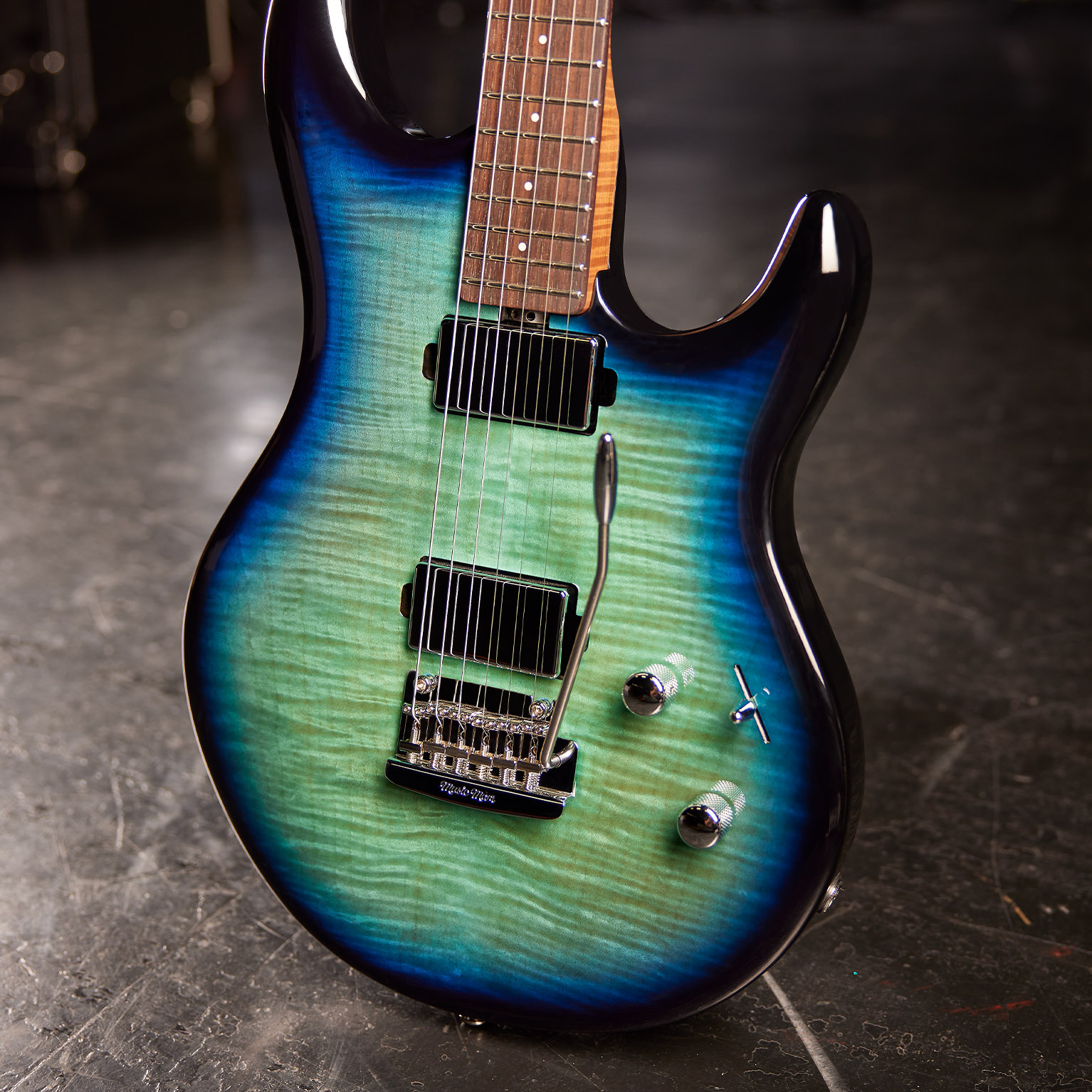

Celebrating three decades with Grammy award-winning guitarist and signature artist Steve Lukather, the Ernie Ball Music Man company is proud to announce the arrival of the new Luke 4 HH maple top signature guitar. This fourth installment in the Lukather signature line of instruments features a lightweight Okoume body, a premium figured maple top with a figured roasted maple neck, and a rosewood fingerboard. The Luke 4 maple top is outfitted with custom Music Man pickup technology, delivering an incredibly dynamic and responsive playing experience. The pickups can achieve an ultra-high-output, powerful, low-end response while retaining a distinctively clean, clear tone at lower volume levels. The Luke 4 HH shares many of the standard specifications of the original Luke guitars, including a double-cut contoured body, a roasted figured maple neck, 22 nickel frets, 5-way switching, adjustable 12db boost, a Music Man vintage floating tremolo and ships in a Mono case.

Luke 4 HH Logo

INDIVIDUELLE OPTIONEN

Gator Burst

Blue Dream

Deine individuellen Optionen:

Modell:
Farbe:
Hals:
Pickguard:
Hardware:

Build Code
000-00-00-00

Luke 4 HH Highlights

Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Slide
Luke 4 HH Highlight
Lightweight Okoume body and maple top with polyester finish
Luke 4 HH Highlight
Crafted with a roasted maple neck, rosewood fingerboard, and 22 nickel frets
Luke 4 HH Highlight
Equipped with an adjustable 12db boost and 5-way switch for more tonal diversity

INSPIRED BY OVER A DECADE OF ELECTRIC GUITAR STRING RESEARCH

HT pickup technology is a new material-based innovation made possible by principles and insights learned from the research and development of Cobalt and M-Steel string technology.

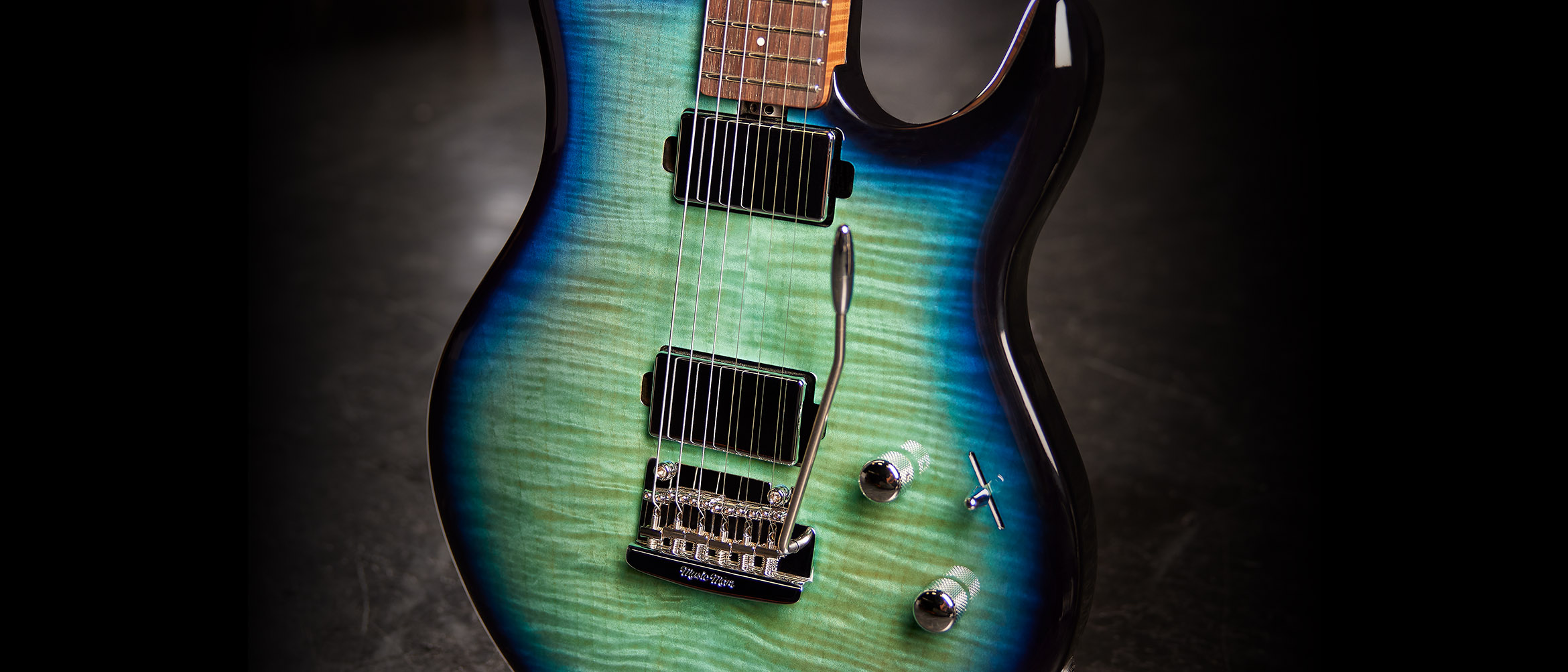

HT Humbucking Bridge Pickup

The Luke 4 HT bridge pickup outperforms regular spec pickups with ultra-high output, more dynamic range, and excellent touch sensitivity. The pickup garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

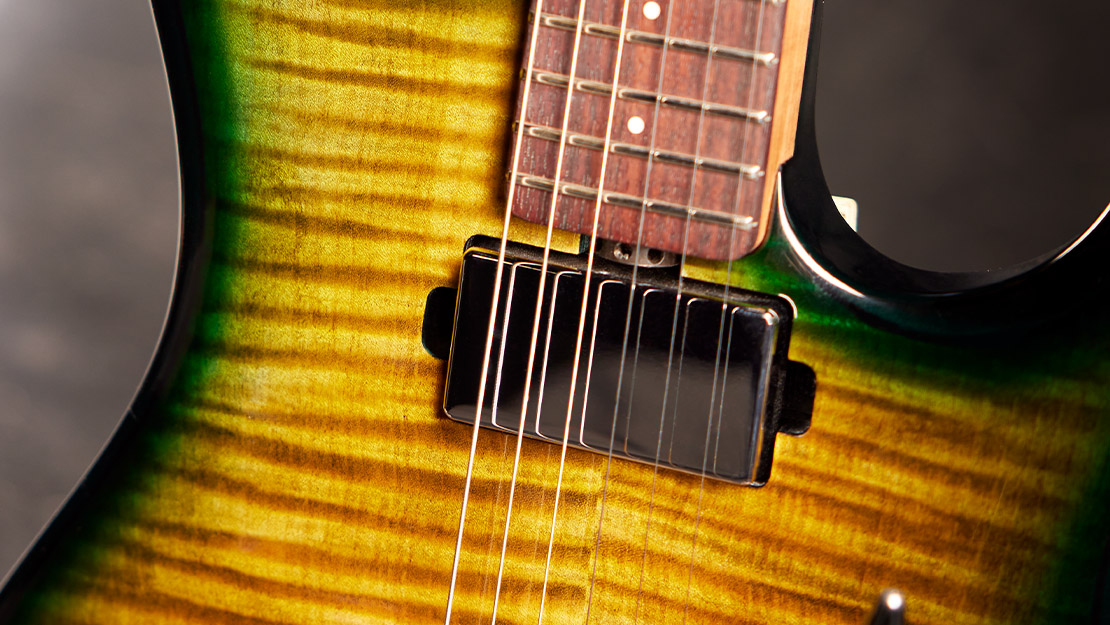

Humbucking Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Luke 4’s bridge pickup.

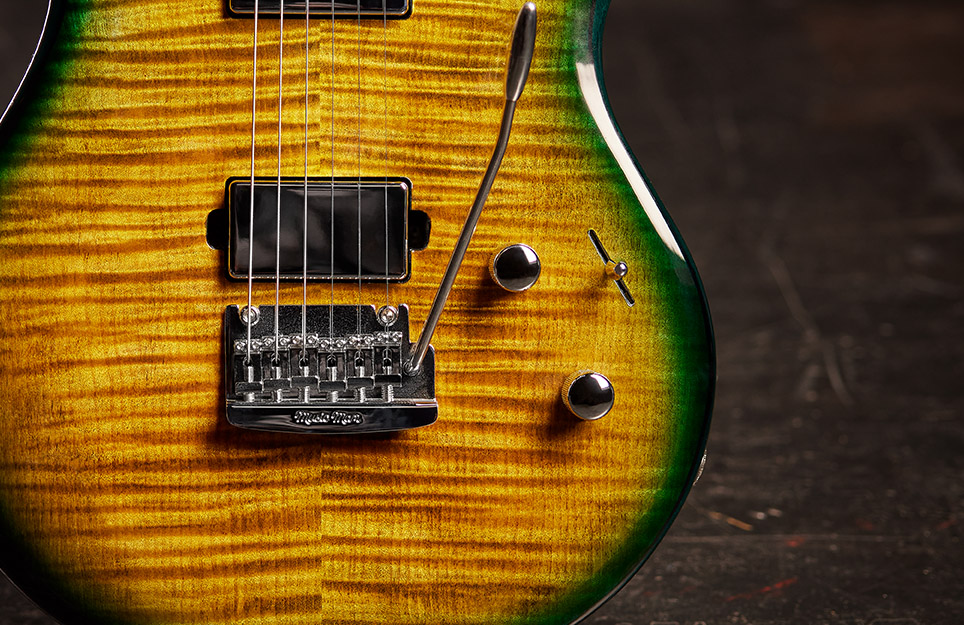

Push Push Boost Circuit

A push-push volume knob activates the Luke 4 HT preamp boost and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high-octane soloing whenever the user chooses.

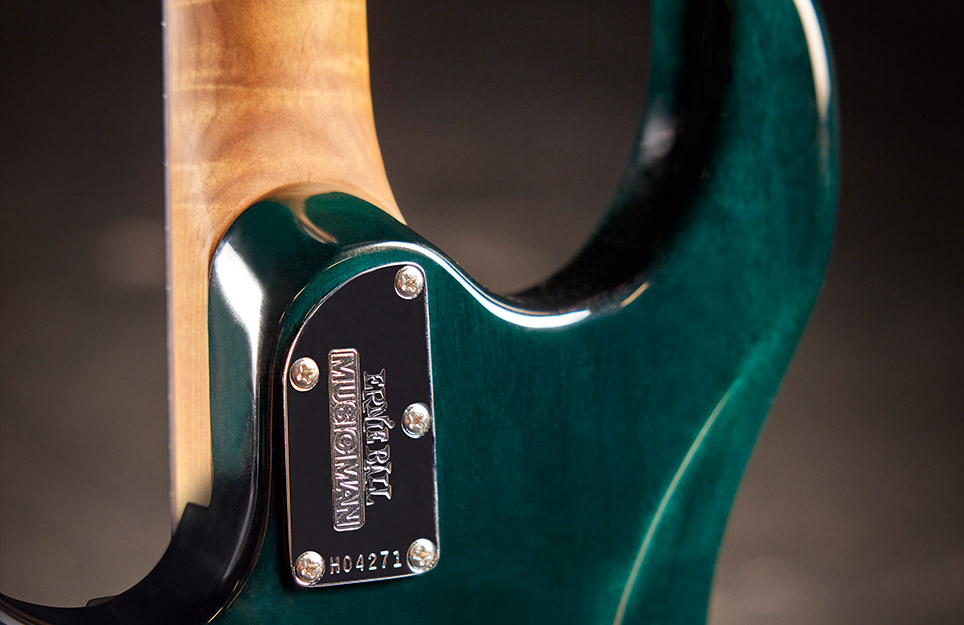

Designed to Perfection

The Luke 4's double-cutaway design features a balanced, resonant Okoume body for extreme playing comfort. The premium roasted maple neck is beautifully figured and features a soft "V" profile that comfortably fits in the palm of your hand.

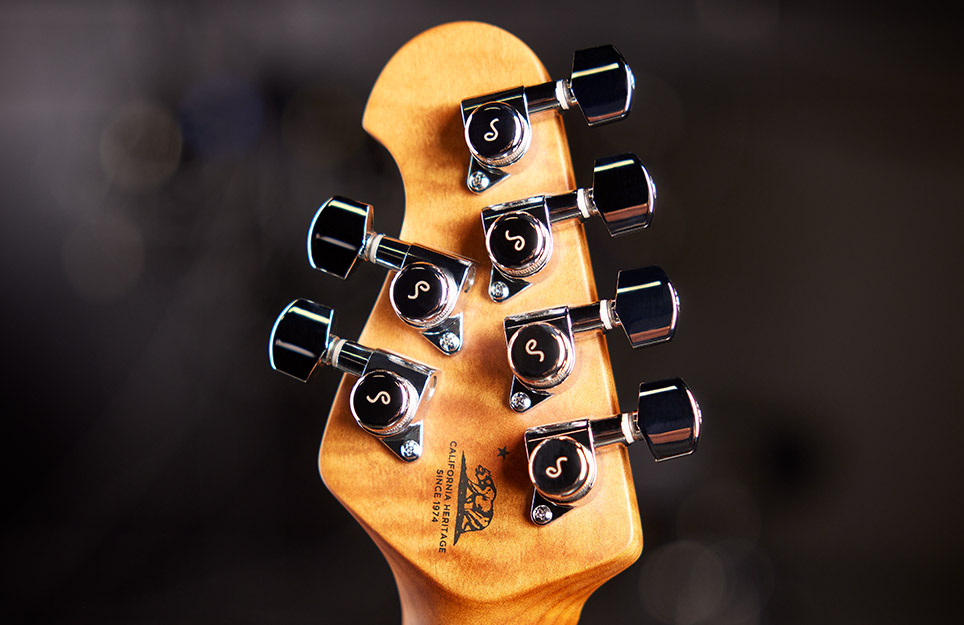

Schaller Locking Tuners

The Luke 4 features Schaller M6-IND locking tuners in Chrome.

Technische Daten, Schaltpläne und mehr

Technische Daten Luke 4 HH Maple Top
Modell Luke 4 HH Maple Top
Größe 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Korpus-Holz Okoume with Flame Maple Top
Korpus-Finish High gloss polyester
Brücke Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Mensur 25.5"
Halsradius 12"
Bünde 22 - Low profile, wide - Nickel
Halsbreite 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Hals Figured Roasted Maple
Griffbrett Rosewood
Griffbrett-Inlays White Corian 1/8" Dots
Hals-Finish Gunstock oil and hand-rubbed special wax blend
Mechaniken Schaller M6-IND locking
Hals-Einstellstab Adjustable - no component or string removal
Halsbefestigung 5-bolt, sculpted neck joint
Elektronik-Abschirmung Graphite acrylic resin coated body cavity and aluminum control cover
Regler Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Schalter Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Tonabnehmer Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Saiten Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)

id => 111

iid => 111

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2023-09-13 14:18:54

updated_at => 2023-09-13 14:18:54

Technische Daten Luke 4 HH Maple Top
Model Luke 4 HH Maple Top
Order 0
Size 12-3/16" wide, 1-3/4" thick, 36-15/16" long (31.0 cm wide, 4.5 cm thick, 92.6 cm long)
Body Wood Okoume with Flame Maple Top
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Music Man® floating vintage tremolo of chrome plated, hardened steel with bent steel saddles
Pickguard
Scale Length 25.5"
Neck Radius 12"
Headstock Size
Frets 22 - Low profile, wide - Nickel
Neck Width 1-5/8" (41.3 mm) at nut, 2-3/16" (55.6 mm) at last fret. Carve thickness of .825" at the 1st fret, .945" at the nut with the Soft "V" Profile.
Neck Wood Figured Roasted Maple
Fingerboard Rosewood
Fret Markers White Corian 1/8" Dots
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod Adjustable - no component or string removal
Neck Attachment 5-bolt, sculpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Music Man® designed preamp with transparent buffered output and switchable volume knob push/push 20+ dB gain boost, tone knob and 5-way selector switch
Switching Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Pickups Bridge - Music Man® HT Humbucker; Neck - Music Man® Custom Wound Neck Humbucker
Left Handed
Strings Ernie Ball 9p-11p-16p-24w-32w-42w (RPS 9 Slinkys #2239)
