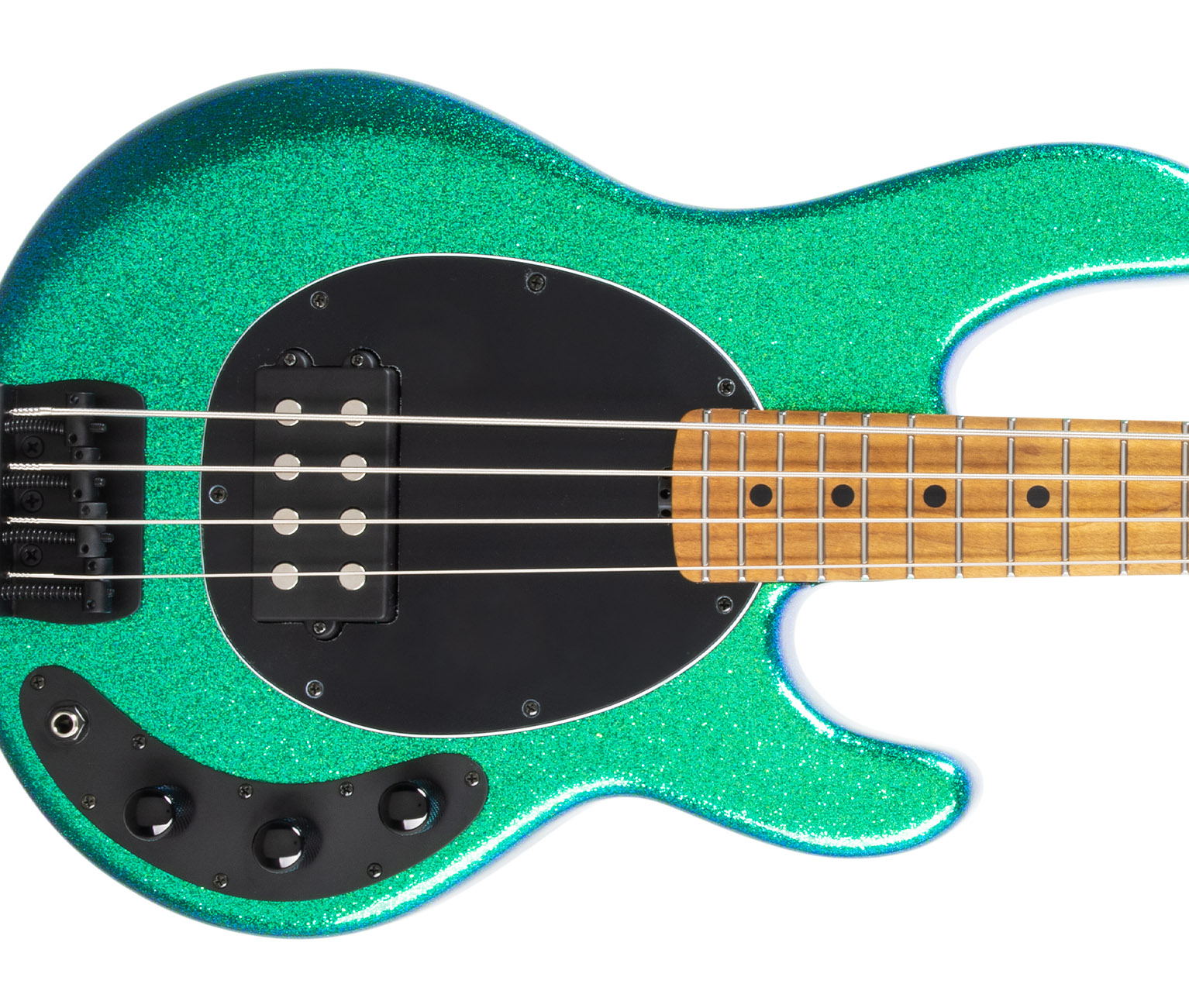

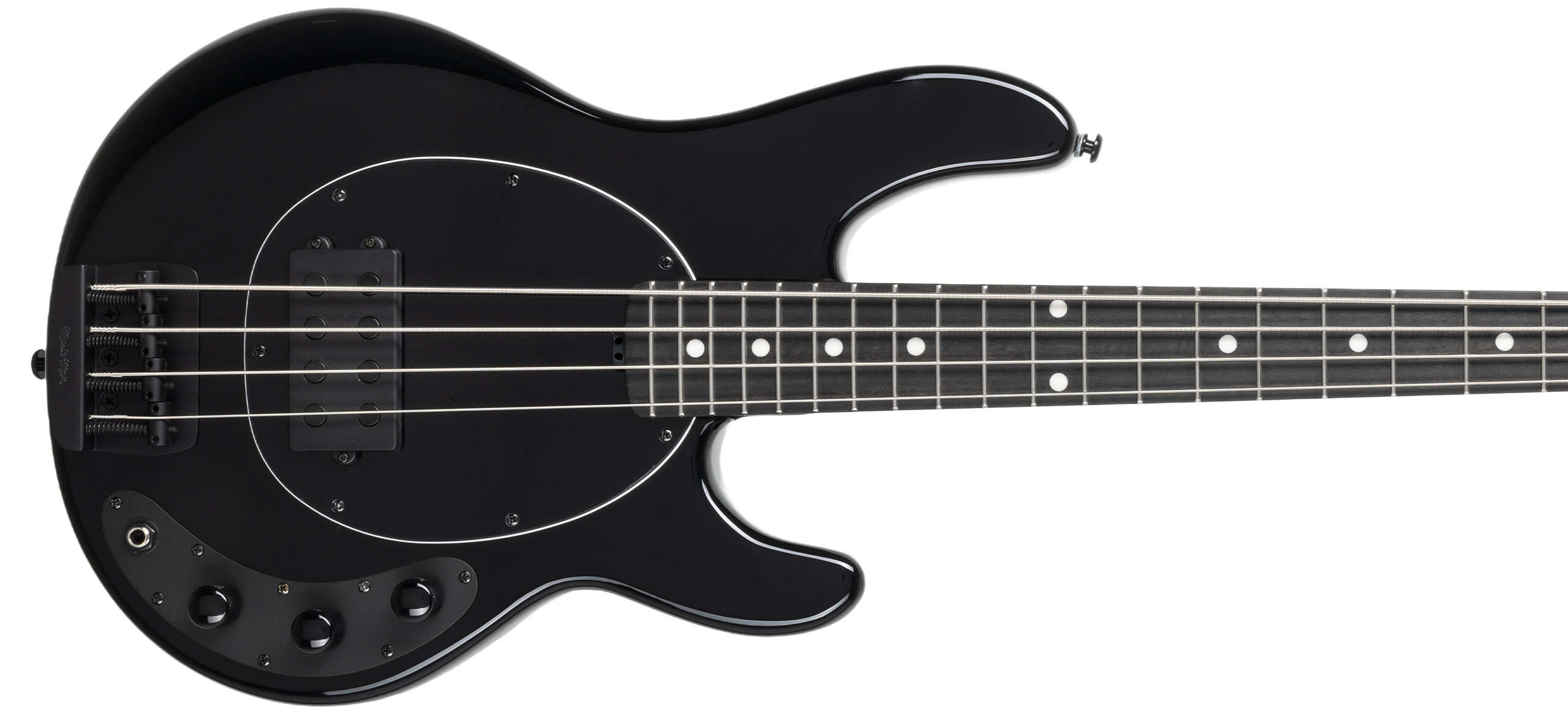

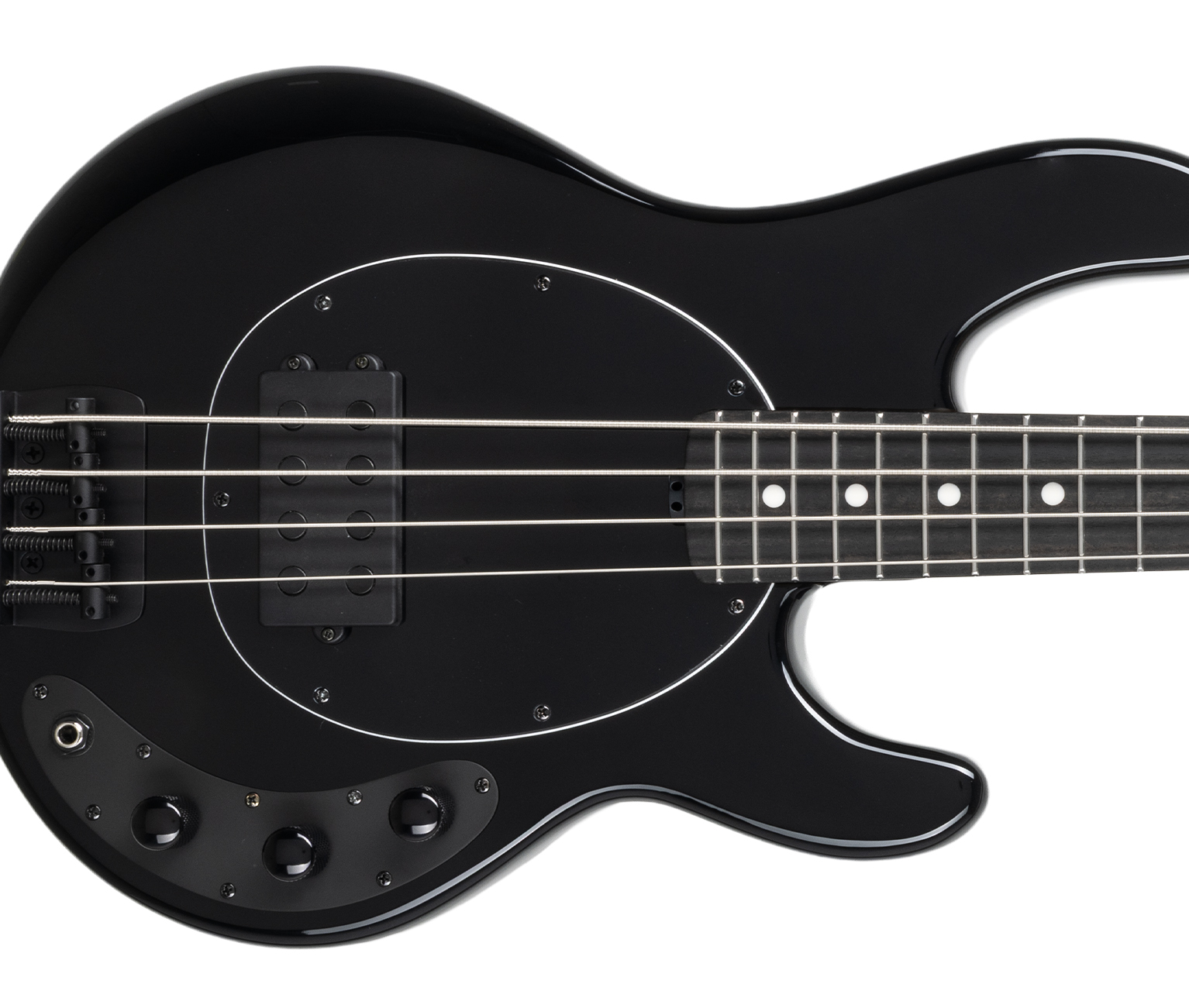

The Ernie Ball Music Man short-scale StingRay bass offers a big thumpy round sound in a convenient smaller package. A 30” scale allows for easier playability due to the shorter spacing between the frets. The Ernie Ball Music Man humbucking pickup, equipped with higher output neodymium magnets, has been specially designed for the short scale bass, providing its signature warm tone. Electronics package includes a 3-way rotary switch featuring parallel, true single-coil, and series modes. Like its big brother the Stingray Special, the short scale bass comes standard with a modern classic bridge, 22 stainless steel frets, and new lightweight Music Man tuning machines with a finer gear ratio.

Short Scale StingRay Logo

INDIVIDUELLE OPTIONEN

Raspberry Pearl

Ultra Marine Blue

Deine individuellen Optionen:

Modell:
Farbe:
Hals:
Pickguard:
Hardware:

Build Code
000-00-00-00

Short Scale StingRay Highlights

Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Slide
Short Scale StingRay Highlight

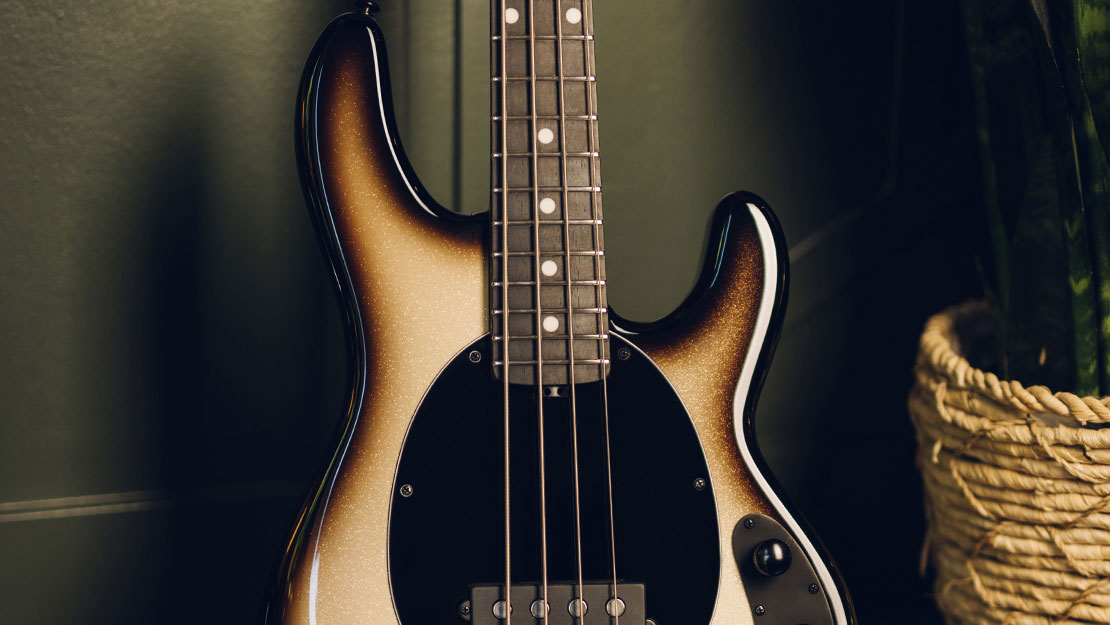

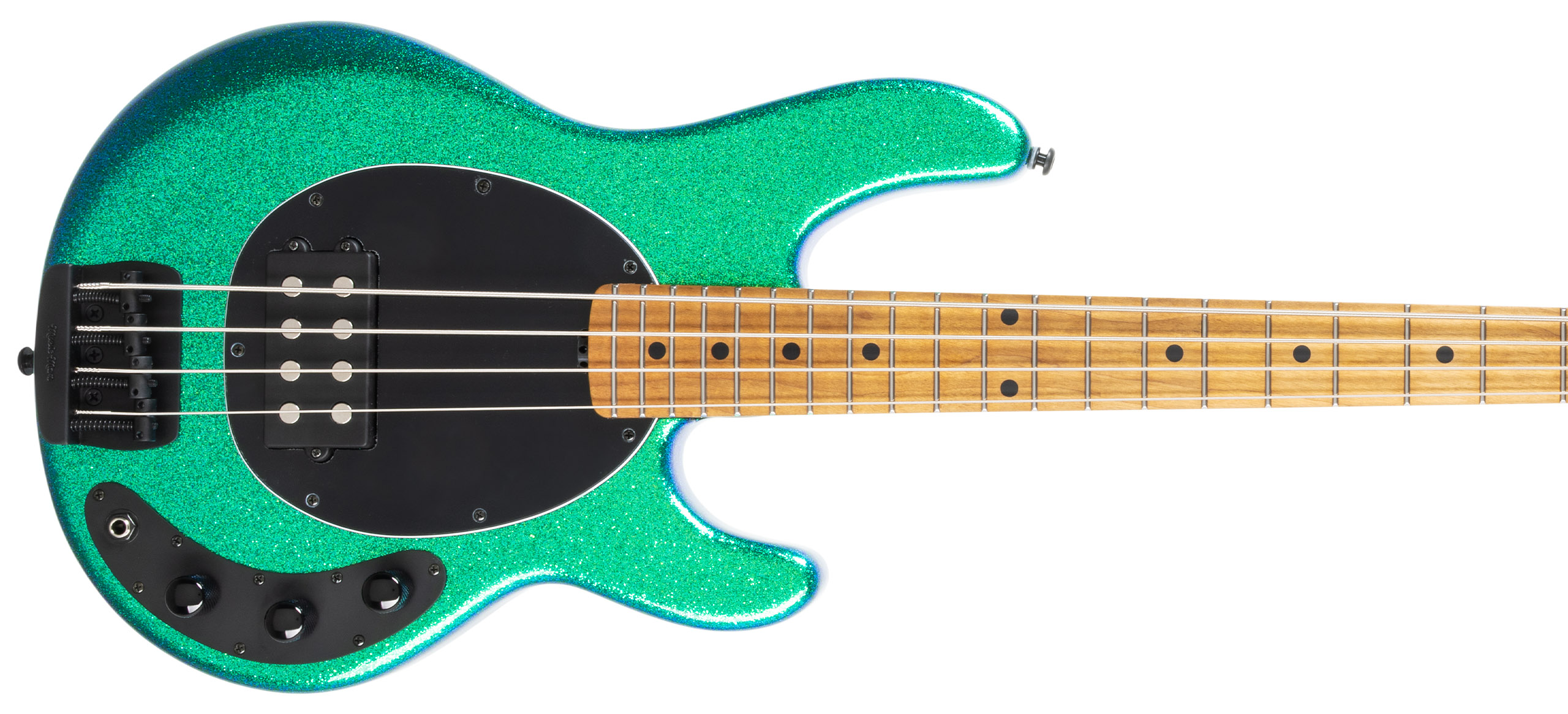

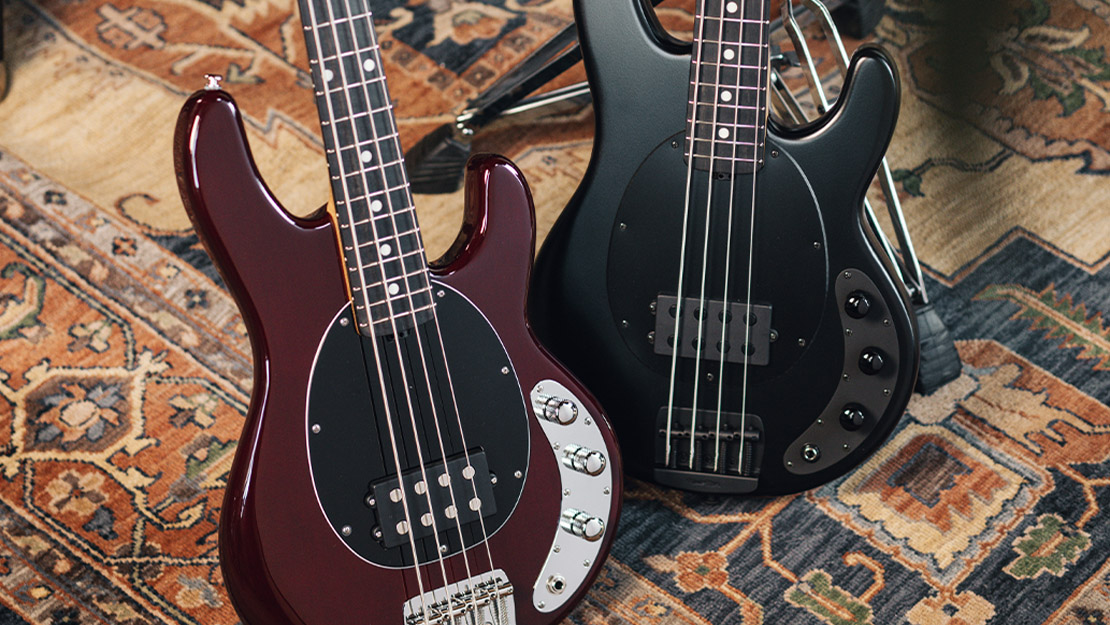

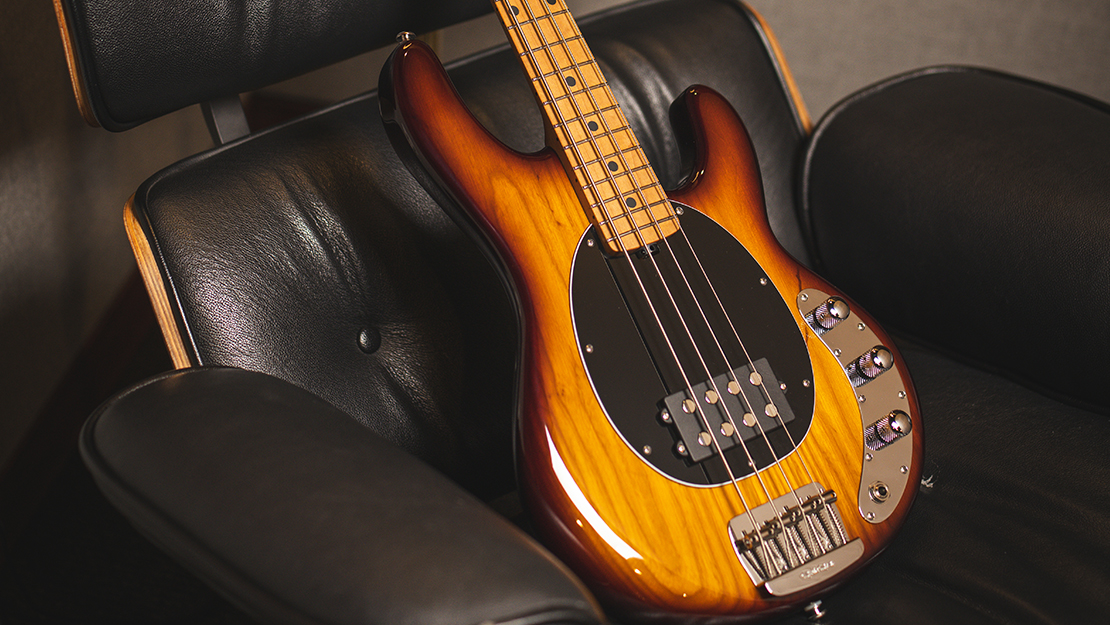

Ash body with rounded arm contour for added comfort
Short Scale StingRay Highlight
Push/push boost volume pot with 3 position rotary pickup switch
Short Scale StingRay Highlight

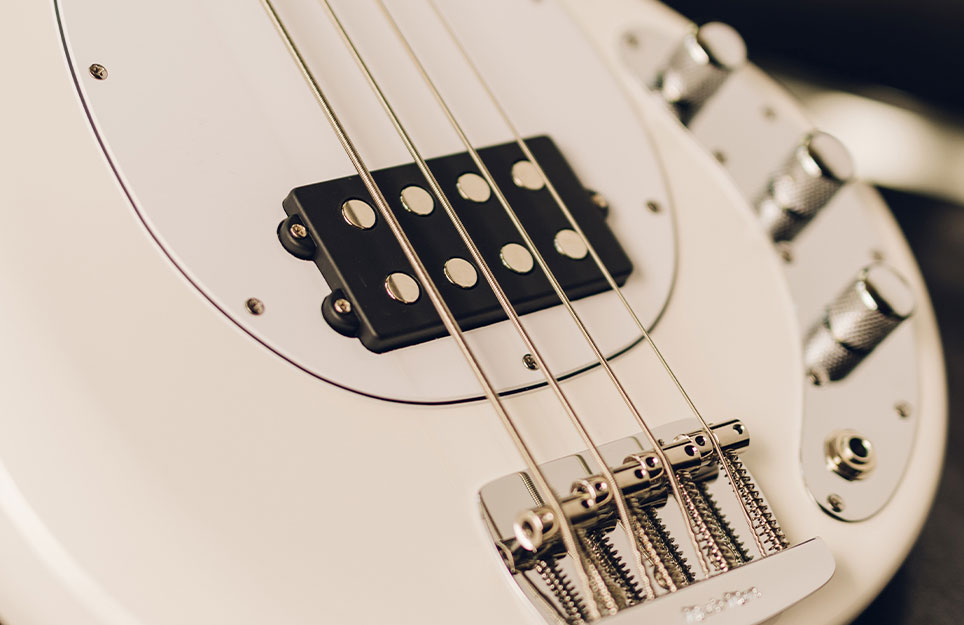

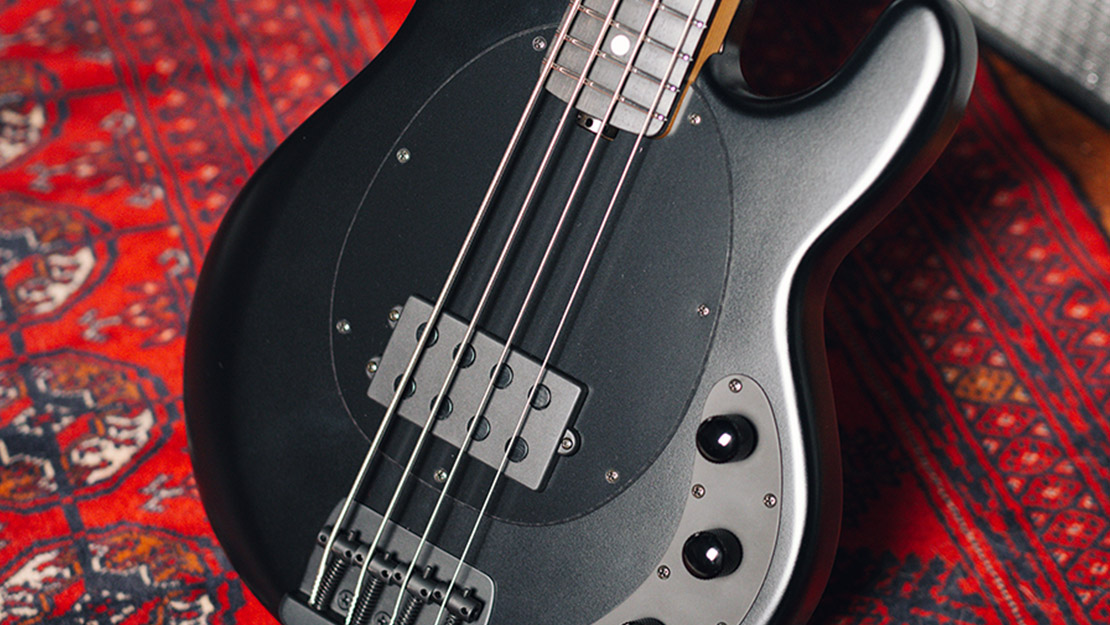

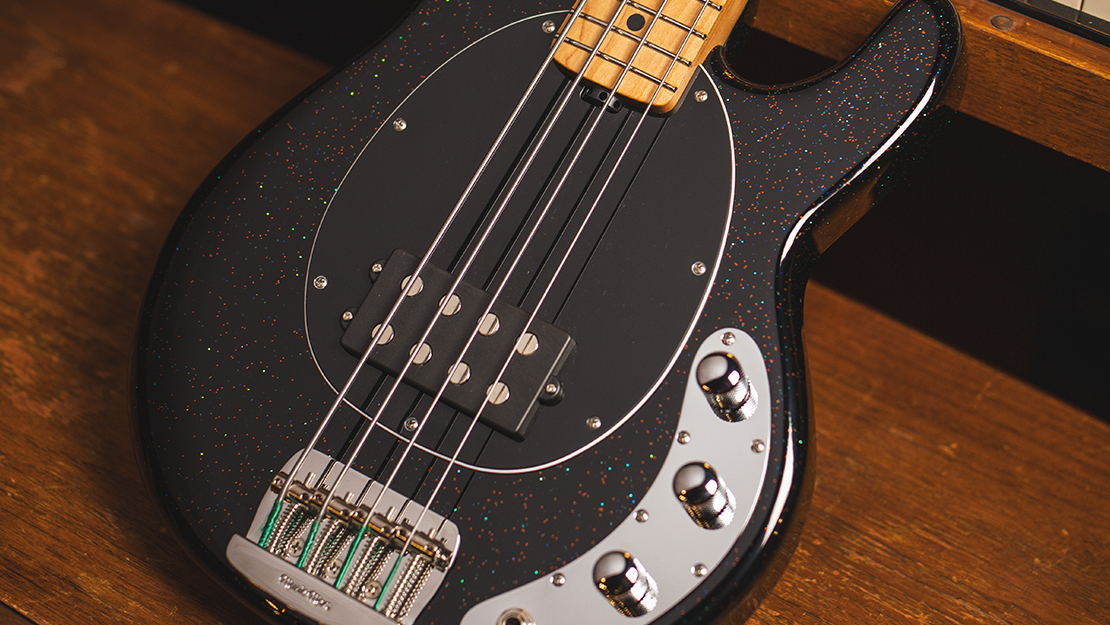

NEODYMIUM HUMBUCKING PICKUP

Technische Daten, Schaltpläne und mehr

Technische Daten Short Scale StingRay Bass
Modell Short Scale StingRay Bass
Größe 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Korpus-Holz Ash
Korpus-Finish High gloss polyester
Brücke Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Mensur 30" (76.2 cm)
Bünde 22 - High profile, wide stainless steel
Halsbreite 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Hals Select Maple
Bundmarkierer 5/16" Dot Inlay
Hals-Finish Gunstock oil and hand-rubbed special wax blend

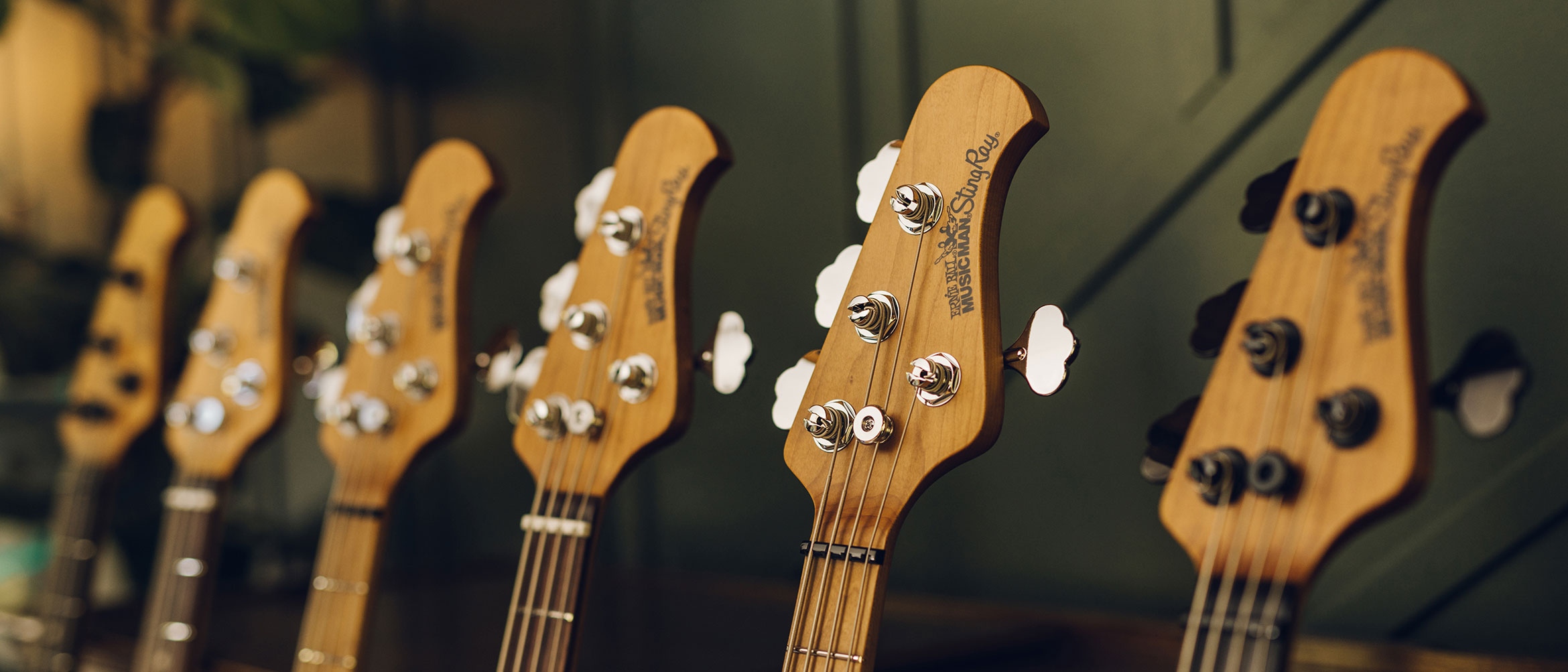

Mechaniken Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Hals-Einstellstab Adjustable - no component or string removal

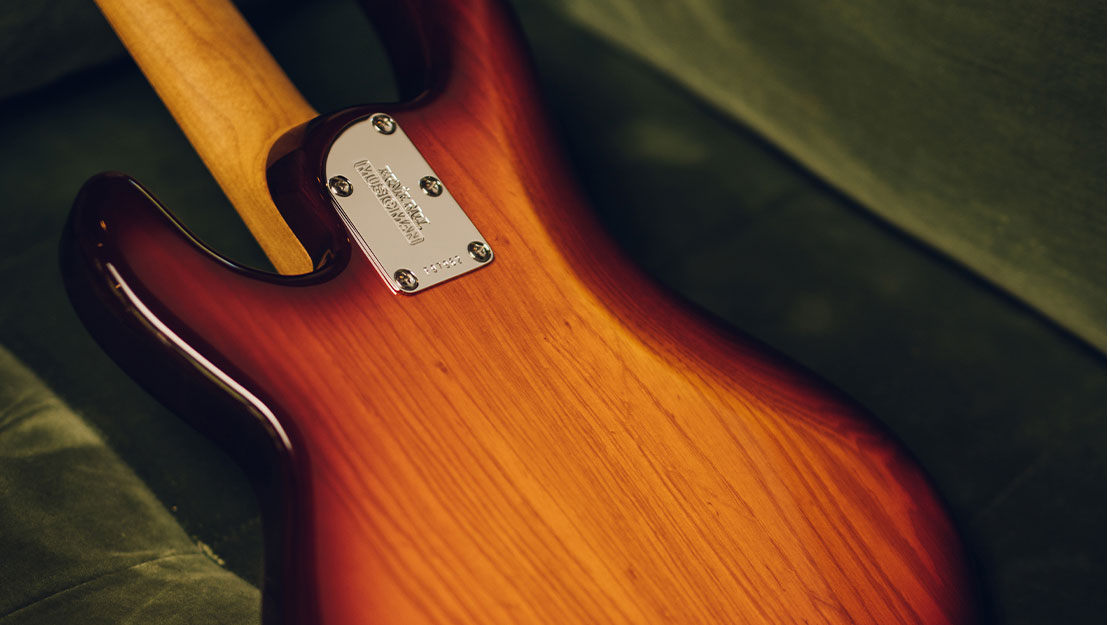

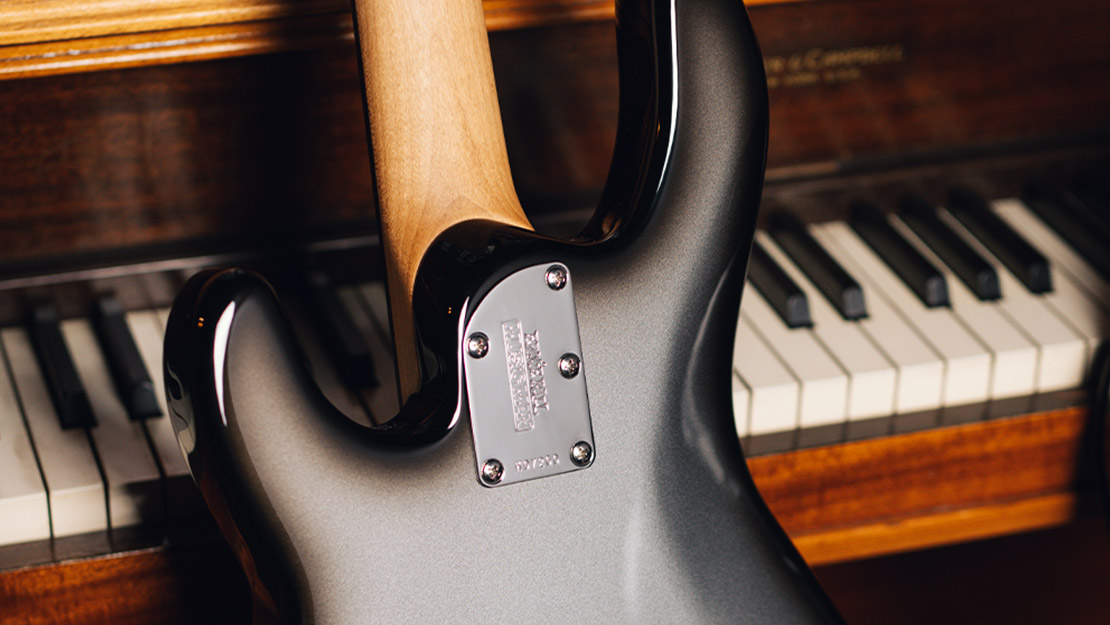

Halsbefestigung 5 bolt, sculpted neck joint
Elektronik-Abschirmung Chrome plated aluminum control cover

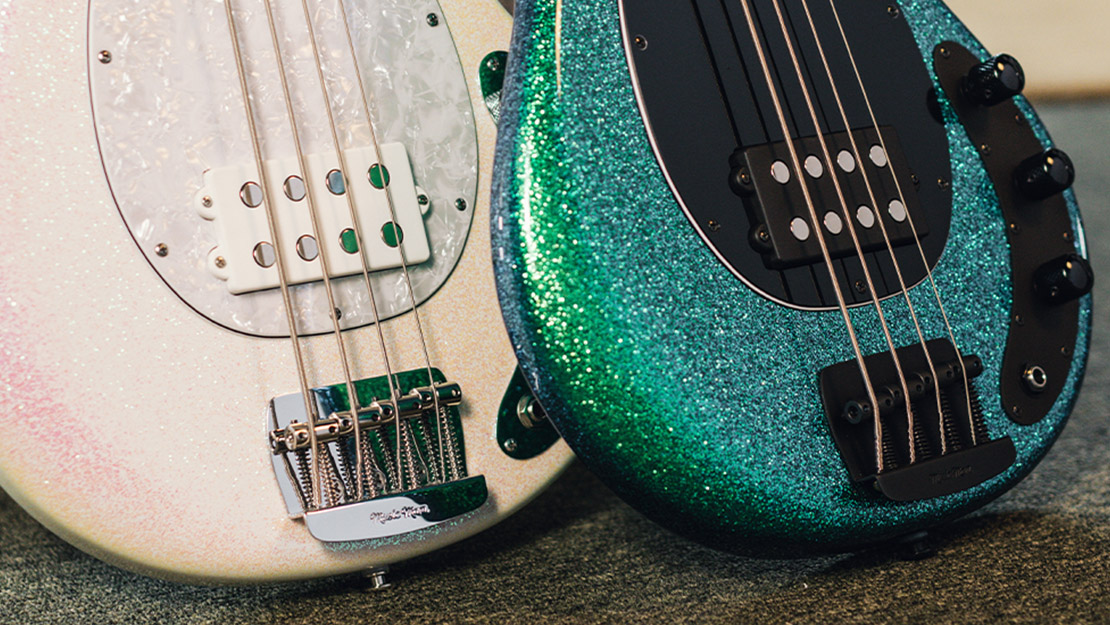

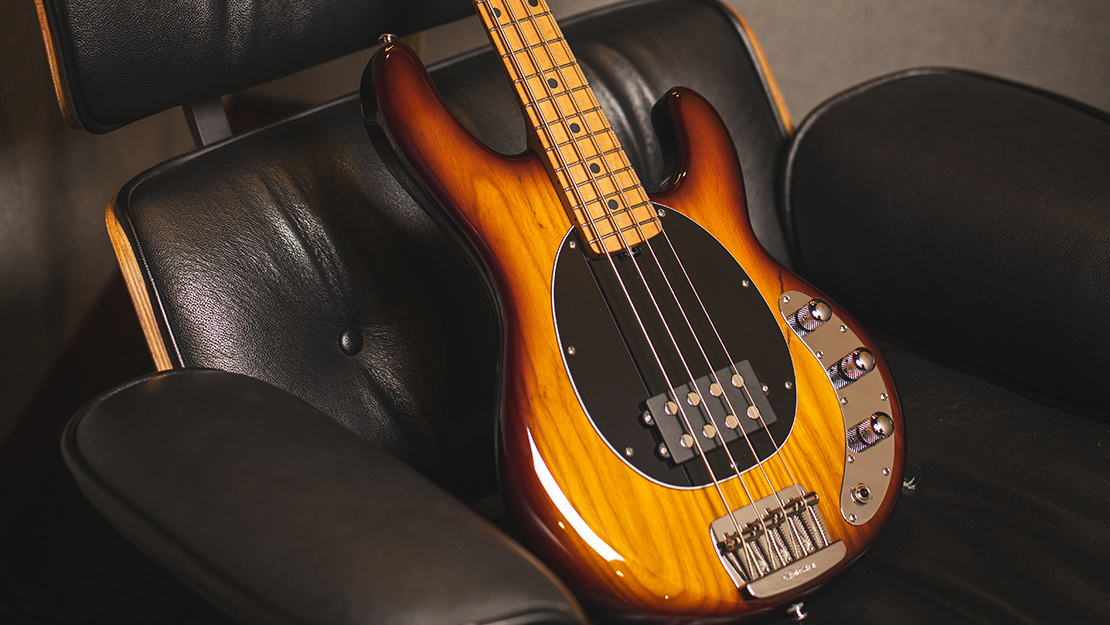

Regler Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Schalter 3-way rotary pickup selector
Tonabnehmer Single Music Man humbucking pickup- neodymium magnets
Linkshänder No
Saiten 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)

id => 82

iid => 82

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2019-08-14 08:32:49

updated_at => 2019-08-14 08:32:49

Technische Daten Short Scale StingRay Bass
Model Short Scale StingRay Bass
Order 0
Size 12-3/8" wide, 1-5/8" thick, 40-7/8" long (31.4 cm wide, 4.1 cm thick, 103.8 cm long)
Body Wood Ash
Body Finish High gloss polyester
Body Colors
Body Bindings
Bridge Vintage Music Man® top loaded chrome plated, steel bridge plate with vintage nickel plated steel saddles
Pickguard
Scale Length 30" (76.2 cm)
Neck Radius
Headstock Size
Frets 22 - High profile, wide stainless steel
Neck Width 1-1/2" (38.1 mm) at the nut, 2-3/8" (60.3 cm) at the last fret
Neck Wood Select Maple
Fingerboard
Fret Markers 5/16" Dot Inlay
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Custom Music Man, lightweight with tapered string posts and ergonomic clover design
Truss Rod Adjustable - no component or string removal

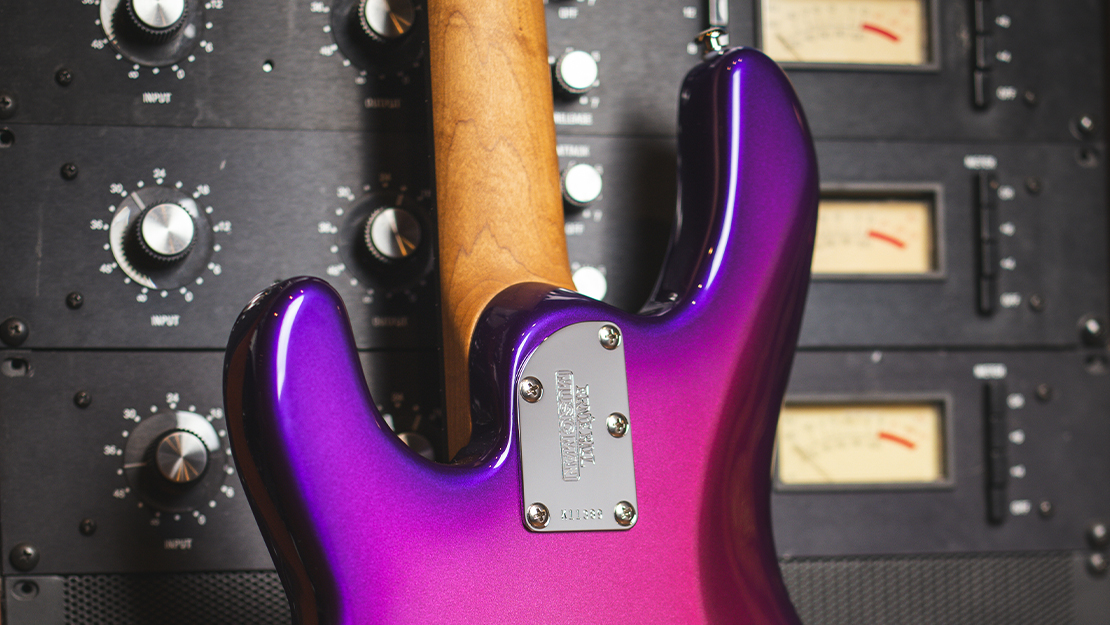

Neck Attachment 5 bolt, sculpted neck joint
Electronic Shielding Chrome plated aluminum control cover
Controls Passive 500kohm push/push volume POT for gain boost, 100kohm tone POT - 0.1uf tone cap
Switching 3-way rotary pickup selector
Pickups Single Music Man humbucking pickup- neodymium magnets
Left Handed No
Strings 45w-65w-85w-105w (Short Scale Regular Slinky Bass #2852)
