The Ernie Ball Music Man Sabre HT guitar blends the classic Sabre design with advanced features. It includes custom Music Man HT pickup technology, developed from extensive guitar string research, delivering dynamic responsiveness. The HT bridge pickup features heat-treated pole pieces and a large ceramic magnet for high output, enhanced high-frequency harmonics, and touch sensitivity. The ceramic-based neck humbucker is designed to complement the bridge pickup’s characteristics. Additional features include a push-push adjustable 20 dB boost and transparent buffered output for consistent tonality across all volume levels. The Sabre HT boasts a contoured Okoume body and a thick flame maple top. It has a roasted figured maple neck and 22 stainless steel frets for exceptional durability and playability. In addition, the electronics package includes a push-push adjustable 20 dB boost function and a transparent buffered output for complete tonal consistency wherever your volume control is set.

Sabre HT Logo

INDIVIDUELLE OPTIONEN

Slymer

Grape Slushie

Blackout

Honey Bear

Deine individuellen Optionen:

Modell:
Farbe:
Hals:
Pickguard:
Hardware:

Build Code
000-00-00-00

Sabre HT Highlights

Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Slide
Sabre HT Highlight
The Sabre HT bridge humbucking pickup features proprietary Heat Treated pole pieces for increased output and wider frequency response
Sabre HT Highlight
The Sabre neck humbucker features large ceramic magnets and has been wound specifically to compliment the Sabre's HT bridge pickup
Sabre HT Highlight
The Sabre HT is crafted with a roasted maple neck, 22 stainless steel frets, and Schaller locking tuners.

Inspired by over a decade of electric guitar string research

Incorporating the principles and insights that contributed to the development of Cobalt and M-Steel Slinkys resulting in a new material-based innovation for pickups

More Output and Dynamic Range

Outperforms normal spec pickups by providing extra output and excellent touch sensitivity

Push Push Boost Circuit

The Sabre's HT preamp boost is activated by a push-push volume knob and is factory set to 12db. Via a trim pot inside the control cavity, the preamp can be adjusted up to 20db if needed for heavy rhythm parts or high octane soloing whenever the user chooses.

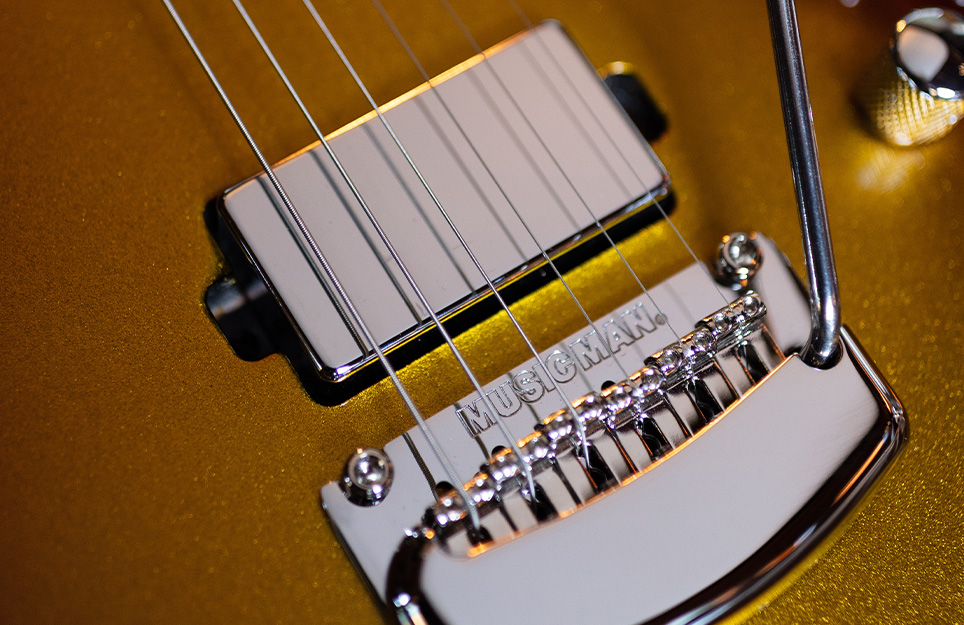

Sabre HT Bridge pickup

The Sabre HT (Heat Treated) bridge pickup outperforms normal spec pickups with more output, dynamic range, and excellent touch sensitivity. The pickup not only achieves ultra-high output but also garners a powerful low-end response while retaining a distinctively clean, clear tone and definition at lower volume levels.

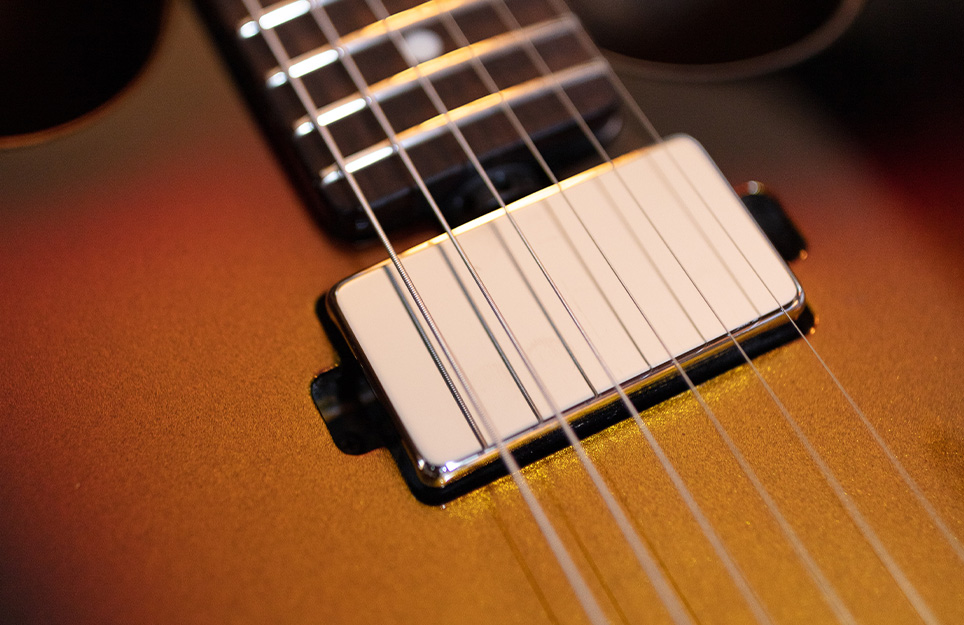

Sabre HT Neck Pickup

The custom-wound neck humbucker also features a large ceramic magnet and has been wound specifically to pair with the Sabre's HT bridge pickup.

Transparent Buffered Output

No matter where your volume control is set, the transparent buffered output preserves your signal from high-frequency loss and keeps your tone bright and strong.

Technische Daten, Schaltpläne und mehr

Technische Daten Sabre HT
Modell Sabre HT
Größe 12-7/8" wide, 1-3/4" thick, 38-1/8" long (32.7 cm wide, 4.4 cm thick, 96.8 cm long)
Korpus-Holz Okoume with thick figured maple top
Korpus-Finish High Gloss Polyester
Korpus-Binding Natural Wood
Brücke Music Man® Modern tremolo with crescent cover and vintage bent steel saddles
Mensur 25.5"
Halsradius 10" (25.4 cm)
Größe Kopfplatte 6-3/8" (16.2 cm) long
Bünde 22 - High Profile Medium Width
Halsbreite 1-11/16" (43.0 mm) at nut; 2-1/4" (56.9 mm) at last fret
Hals Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime / Snowy Night - Select Maple
Griffbrett Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime - Rosewood; Snowy Night - Roasted Flame Maple
Griffbrett-Inlays Dot
Hals-Finish Yucatan Blue & Raspberry - Gunstock oil and hand-rubbed special wax blend; Showtime & Snowy Night - High Gloss Polyester
Hals-Farben Yucatan Blue & Raspberry - Natural; Showtime & Snowy Night - Match body
Mechaniken Schaller M6-IND locking
Halsbefestigung 5 bolt, scuplpted neck joint
Elektronik-Abschirmung Graphite acrylic resin coated body cavity and aluminum control cover
Regler Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Schalter 5-way lever pickup selector; Push/push volume pot for boost
Tonabnehmer Bridge: Music Man® HT Humbucker - Neck: Music Man® Custom Wound Neck Humbucker
Saiten 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)

id => 106

iid => 106

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2022-08-03 11:36:08

updated_at => 2022-08-03 11:36:08

Technische Daten Sabre HT
Model Sabre HT
Order 0
Size 12-7/8" wide, 1-3/4" thick, 38-1/8" long (32.7 cm wide, 4.4 cm thick, 96.8 cm long)
Body Wood Okoume with thick figured maple top
Body Finish High Gloss Polyester
Body Colors
Body Bindings Natural Wood
Bridge Music Man® Modern tremolo with crescent cover and vintage bent steel saddles
Pickguard
Scale Length 25.5"
Neck Radius 10" (25.4 cm)
Headstock Size 6-3/8" (16.2 cm) long
Frets 22 - High Profile Medium Width
Neck Width 1-11/16" (43.0 mm) at nut; 2-1/4" (56.9 mm) at last fret
Neck Wood Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime / Snowy Night - Select Maple
Fingerboard Yucatan Blue & Raspberry - Roasted Figured Maple; Showtime - Rosewood; Snowy Night - Roasted Flame Maple
Fret Markers Dot
Neck Finish Yucatan Blue & Raspberry - Gunstock oil and hand-rubbed special wax blend; Showtime & Snowy Night - High Gloss Polyester
Neck Colors Yucatan Blue & Raspberry - Natural; Showtime & Snowy Night - Match body
Neck Binding
Tuning Machines Schaller M6-IND locking
Truss Rod
Neck Attachment 5 bolt, scuplpted neck joint
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Volume knob with push/push switch for gain boost, tone knob, 5 way pickup selector switch.
Switching 5-way lever pickup selector; Push/push volume pot for boost
Pickups Bridge: Music Man® HT Humbucker - Neck: Music Man® Custom Wound Neck Humbucker
Left Handed
Strings 10p-13p-17p-26w-36w-46w (RPS 10 Slinkys #2240)
